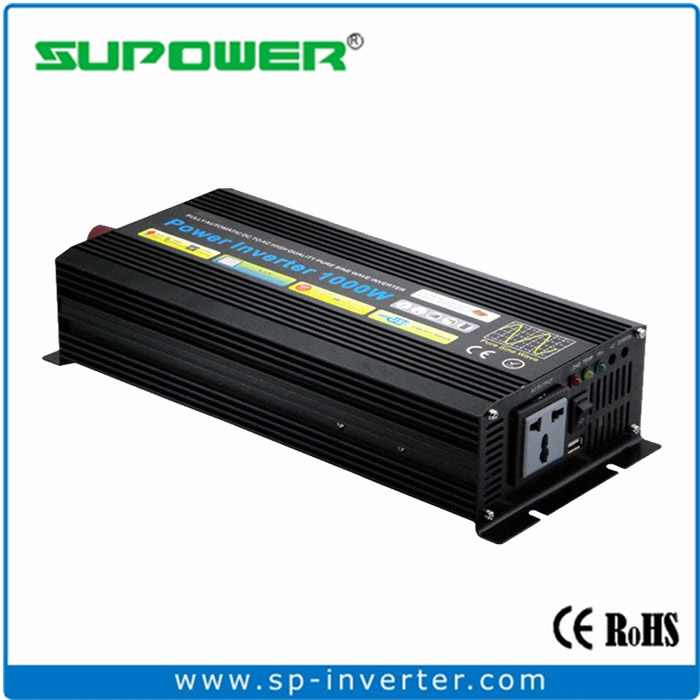

1000W Pure Sine Wave Power Inverter with remote control

Product Description

Product Name: 1000W Pure Sine Wave Power Inverter

Country of Origin: China

Model: SPP1000

Continue Power: 1000 W
Max. Output Surge: 2000 W
DC Input Voltage: 12V or 24V or 36v or 48V
AC Output Voltage: 100V / 110V / 115V / 120V / 200V/ 220V / 230V / 240V to be selected
Dimensions (mm): (310+30) x 157 x 75

Weight (kg): 3.5 kg

‧Output Socket (optional):

3000W Pure Sine Wave Power Inverter with remote control

Features :

l Dedicated design for the use of Solar Power Energy.

l Pure Sine Wave

l Wireless Remote Control (Optional)

l Supply USB 5V/500mA

l High temperature alarm and protection system

l Output overloaded alarm and protection system

l Output short circuit alarm and protection system

l High surge capacity for starting demanding loads

l Alarm and protection for low / high battery

Scope of Application :

Medical Instruments, Emergency Power, Oxygen Concentrators, Cash Register, Home Theater, High-end Stereos, Notebook, Computers, Power Tools, Radios, DVD players, TV's , Musical Instruments, Recording Equipments, Limousines, Buses, RV's, Precision Equipment, Sensitive Radio Equipment, Laser Printers, Fax Machines, etc.
USB 5V DC output is for Digital Camera, Cell Phone, Video Game, MP3, MP4, PDA

Application Place:
1.In-car or on-boat devices series: military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.
2. Industry equipments series: solar energy, wind power, gas discharge lamp and etc.
3.Office area: Computer, printer, copier, scanner, digital camera and etc.
4.Kitchen utensils series: Micro-wave oven, induction cooker,refrigerator, and etc.
5.House appliance devices: Electric fans, vacuum cleaner, AC, lighting lamps, and etc.
6.Power tool series: electric saw, drilling machine, punching machines, air compressors, and etc.

Parameter:
Model		SPP1000-12	SPP1000-24	SPP1000-36	SPP-1000-48
Output	Continuous output	1000W
	Surge Power	2000W
	AC Voltage	100V / 110V / 115V / 120V / 200V/ 220V / 230V / 240V to be selected
	Regulation	Vrms ± 3%
	Frequency	50Hz or 60Hz
	Wave Form	Pure Sine Wave
	Total Harmonic Distortion	THD ＜ 3%
	USB Output	DC 5V ± 5% 500mA
Input	Battery Voltage	12V	24V	36V	48V
	DC Current (typ.)	100A	50A	33A	25A
	Low Battery Alarm	10.5V ± 2%	21V ± 2%	31.5V ± 2%	42V ± 2%
	Battery Voltage Low Stop	10V ± 2%	20V ± 2%	30V ± 2%	40V ± 2%
	High Battery	16V ± 2%	32V ± 2%	48V ± 2%	64V ± 2%
	No load current	900mA	500mA	300mA	230mA
	Efficiency	95%
Protection	High temperature	Yes
	Short-circuit	Yes
	Overload	Yes
	Input Voltage	Yes
Intelligent Design Heat Auto Control		Fan Start : 42℃ ± 3 , Fan Stop : 38℃± 3
		High Temperature Shut Down : 63℃±3 , Restart Output : 55℃±3
Indicator		Normally : Green LED Over Temperature : Yellow LED Exceptionally : Red LED
Others		Optional with wireless remote control or without remote control
Mechanical	Dimensions (mm)	310+30 (D) x 157 (W) x 75 (H)
	Weight	3.5 kgs
